Revisione Cambio 3 Rail – Smontaggio 1

[av_heading tag=’h2′ padding=’10’ heading=’Revisione Cambio 3 Rail

(Spitfire MK3)

– Luglio 2009 -‘ color=” style=’blockquote modern-quote modern-centered’ custom_font=” size=” subheading_active=” subheading_size=’15’ custom_class=” admin_preview_bg=” av-desktop-hide=” av-medium-hide=” av-small-hide=” av-mini-hide=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” margin=”][/av_heading]

[av_one_fifth first min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ link=” linktarget=” link_hover=” padding=’0px’ border=” border_color=” radius=’0px’ background=’bg_color’ background_color=” background_gradient_color1=” background_gradient_color2=” background_gradient_direction=’vertical’ src=” background_position=’top left’ background_repeat=’no-repeat’ animation=” mobile_breaking=” mobile_display=” av_uid=’av-9mbgnv’]
[av_icon_box position=’left’ icon_style=” boxed=” icon=’ue856′ font=’entypo-fontello’ title=’Sbarco Cambio’ link=’page,2189′ linktarget=” linkelement=’both’ font_color=” custom_title=” custom_content=” color=” custom_bg=” custom_font=” custom_border=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-l2vkfbqa’ admin_preview_bg=”][/av_icon_box]
[/av_one_fifth]

[av_one_fifth min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ link=” linktarget=” link_hover=” padding=’0px’ border=” border_color=” radius=’0px’ background=’bg_color’ background_color=” background_gradient_color1=” background_gradient_color2=” background_gradient_direction=’vertical’ src=” background_position=’top left’ background_repeat=’no-repeat’ animation=” mobile_breaking=” mobile_display=” av_uid=’av-873jhn’]
[av_icon_box position=’left’ icon_style=” boxed=” icon=’ue856′ font=’entypo-fontello’ title=’Smontaggio’ link=’page,1947′ linktarget=” linkelement=’both’ font_color=” custom_title=” custom_content=” color=” custom_bg=” custom_font=” custom_border=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-l2vkfbqa’ admin_preview_bg=”][/av_icon_box]
[/av_one_fifth]

[av_one_fifth min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ link=” linktarget=” link_hover=” padding=’0px’ border=” border_color=” radius=’0px’ background=’bg_color’ background_color=” background_gradient_color1=” background_gradient_color2=” background_gradient_direction=’vertical’ src=” background_position=’top left’ background_repeat=’no-repeat’ animation=” mobile_breaking=” mobile_display=” av_uid=’av-m72xn’]
[av_icon_box position=’left’ icon_style=” boxed=” icon=’ue856′ font=’entypo-fontello’ title=’Smontaggio 1′ link=’page,2282′ linktarget=” linkelement=’both’ font_color=” custom_title=” custom_content=” color=” custom_bg=” custom_font=” custom_border=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-l2vkclq4′ admin_preview_bg=”][/av_icon_box]
[/av_one_fifth]

[av_one_fifth min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ link=” linktarget=” link_hover=” padding=’0px’ border=” border_color=” radius=’0px’ background=’bg_color’ background_color=” background_gradient_color1=” background_gradient_color2=” background_gradient_direction=’vertical’ src=” background_position=’top left’ background_repeat=’no-repeat’ animation=” mobile_breaking=” mobile_display=” av_uid=’av-4mxk3f’]
[av_icon_box position=’left’ icon_style=” boxed=” icon=’ue856′ font=’entypo-fontello’ title=’Controllo pezzi’ link=’page,2317′ linktarget=” linkelement=’both’ font_color=” custom_title=” custom_content=” color=” custom_bg=” custom_font=” custom_border=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-l2vkclq4′ admin_preview_bg=”][/av_icon_box]
[/av_one_fifth]

[av_one_fifth min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ link=” linktarget=” link_hover=” padding=’0px’ border=” border_color=” radius=’0px’ background=’bg_color’ background_color=” background_gradient_color1=” background_gradient_color2=” background_gradient_direction=’vertical’ src=” background_position=’top left’ background_repeat=’no-repeat’ animation=” mobile_breaking=” mobile_display=” av_uid=’av-2z4kdn’]
[av_icon_box position=’left’ icon_style=” boxed=” icon=’ue856′ font=’entypo-fontello’ title=’Rimontaggio e verniciatura’ link=’page,2367′ linktarget=” linkelement=’both’ font_color=” custom_title=” custom_content=” color=” custom_bg=” custom_font=” custom_border=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-l2vkclq4′ admin_preview_bg=”][/av_icon_box]
[/av_one_fifth]

[av_one_fifth first min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ link=” linktarget=” link_hover=” padding=’0px’ border=” border_color=” radius=’0px’ background=’bg_color’ background_color=” background_gradient_color1=” background_gradient_color2=” background_gradient_direction=’vertical’ src=” background_position=’top left’ background_repeat=’no-repeat’ animation=” mobile_breaking=” mobile_display=” av_uid=’av-2z4kdn’]
[av_icon_box position=’left’ icon_style=” boxed=” icon=’ue856′ font=’entypo-fontello’ title=’Rimontaggio’ link=’page,2451′ linktarget=” linkelement=’both’ font_color=” custom_title=” custom_content=” color=” custom_bg=” custom_font=” custom_border=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-l2vkclq4′ admin_preview_bg=”][/av_icon_box]
[/av_one_fifth]

[av_one_fifth min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ link=” linktarget=” link_hover=” padding=’0px’ border=” border_color=” radius=’0px’ background=’bg_color’ background_color=” background_gradient_color1=” background_gradient_color2=” background_gradient_direction=’vertical’ src=” background_position=’top left’ background_repeat=’no-repeat’ animation=” mobile_breaking=” mobile_display=” av_uid=’av-2z4kdn’]
[av_icon_box position=’left’ icon_style=” boxed=” icon=’ue856′ font=’entypo-fontello’ title=’Rimontaggio 1′ link=’page,2558′ linktarget=” linkelement=’both’ font_color=” custom_title=” custom_content=” color=” custom_bg=” custom_font=” custom_border=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-l2vkclq4′ admin_preview_bg=”][/av_icon_box]
[/av_one_fifth]

[av_hr class=’default’ height=’50’ shadow=’no-shadow’ position=’center’ custom_border=’av-border-thin’ custom_width=’50px’ custom_border_color=” custom_margin_top=’30px’ custom_margin_bottom=’30px’ icon_select=’yes’ custom_icon_color=” icon=’ue808′ av_uid=’av-5apky98′]

[av_tab_section transition=’av-tab-no-transition’ padding=’default’ tab_pos=’av-tab-above-content’ content_height=’av-tab-content-auto’ tab_padding=’default’ initial=’1′ id=” av_element_hidden_in_editor=’0′ av_admin_tab_active=’1′ bg_color=” color=” av_uid=’av-7em5gc’]
[av_tab_sub_section tab_title=’Smontaggio 1′ vertical_align=’middle’ icon_select=’no’ icon=’ue800′ font=’entypo-fontello’ tab_image=” tab_image_style=” color=” background_color=” src=” attachment=” attachment_size=” background_attachment=’scroll’ background_position=’top left’ background_repeat=’no-repeat’ av_uid=’av-jjfdp569′]

[av_textblock size=’16’ font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-546c5po’ admin_preview_bg=”]

Mi sentivo in dirittura d’arrivo ma un’altra insidia mi attendeva al varco ……….

[/av_textblock]

[/av_tab_sub_section]
[/av_tab_section]

[av_section min_height=” min_height_px=’500px’ padding=’default’ shadow=’no-border-styling’ bottom_border=’no-border-styling’ bottom_border_diagonal_color=’#333333′ bottom_border_diagonal_direction=’scroll’ bottom_border_style=’scroll’ scroll_down=” custom_arrow_bg=” id=” color=’main_color’ background=’bg_color’ custom_bg=” background_gradient_color1=” background_gradient_color2=” background_gradient_direction=’vertical’ src=” attach=’scroll’ position=’top left’ repeat=’no-repeat’ video=” video_ratio=’16:9′ video_mobile_disabled=” overlay_enable=” overlay_opacity=’0.5′ overlay_color=” overlay_pattern=” overlay_custom_pattern=” av-desktop-hide=” av-medium-hide=” av-small-hide=” av-mini-hide=” av_element_hidden_in_editor=’0′ av_uid=’av-woxq57′]
[av_one_fifth first min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ link=” linktarget=” link_hover=” padding=’0px’ border=” border_color=” radius=’0px’ background=’bg_color’ background_color=” background_gradient_color1=” background_gradient_color2=” background_gradient_direction=’vertical’ src=” background_position=’top left’ background_repeat=’no-repeat’ animation=” mobile_breaking=” mobile_display=” av_uid=’av-uec1ob’]

[/av_one_fifth][av_three_fifth min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ link=” linktarget=” link_hover=” padding=’0px’ border=” border_color=” radius=’0px’ background=’bg_color’ background_color=” background_gradient_color1=” background_gradient_color2=” background_gradient_direction=’vertical’ src=” background_position=’top left’ background_repeat=’no-repeat’ animation=” mobile_breaking=” mobile_display=” av_uid=’av-tmnlrf’]

[av_table purpose=’pricing’ pricing_table_design=’avia_pricing_default’ pricing_hidden_cells=” caption=” responsive_styling=’avia_responsive_table’ av_uid=’av-qqrw4r’]
[av_row row_style=” av_uid=’av-7jqa96′][av_cell col_style=” av_uid=’av-60w9fu’][/av_cell][av_cell col_style=” av_uid=’av-4ijtca’][/av_cell][av_cell col_style=” av_uid=’av-3b0tay’][/av_cell][/av_row]
[/av_table]

[/av_three_fifth][av_one_fifth min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ link=” linktarget=” link_hover=” padding=’0px’ border=” border_color=” radius=’0px’ background=’bg_color’ background_color=” background_gradient_color1=” background_gradient_color2=” background_gradient_direction=’vertical’ src=” background_position=’top left’ background_repeat=’no-repeat’ animation=” mobile_breaking=” mobile_display=” av_uid=’av-ja7guz’]

[/av_one_fifth][av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-k3lhnd7v’ admin_preview_bg=”]
Un piccolo estrattore serve per la rimozione del paraolio posteriore; la presenza diffusa di silicone mostra un probabile restauro in un periodo in cui non erano facilmente reperibili i ricambi (ritengo sia avvenuto negli anni 90).
[/av_textblock]

[av_table purpose=’pricing’ pricing_table_design=’avia_pricing_default’ pricing_hidden_cells=” caption=” responsive_styling=’avia_responsive_table’ av_uid=’av-qqrw4r’]
[av_row row_style=” av_uid=’av-e7o6re’][av_cell col_style=” av_uid=’av-d1f9oa’][/av_cell][av_cell col_style=” av_uid=’av-b1gti2′][/av_cell][/av_row]
[/av_table]

[av_table purpose=’pricing’ pricing_table_design=’avia_pricing_default’ pricing_hidden_cells=” caption=” responsive_styling=’avia_responsive_table’ av_uid=’av-qqrw4r’]
[av_row row_style=” av_uid=’av-9jcim2′][av_cell col_style=” av_uid=’av-7saa7u’][/av_cell][av_cell col_style=” av_uid=’av-mw5yy’][/av_cell][av_cell col_style=” av_uid=’av-4rwyoq’][/av_cell][av_cell col_style=” av_uid=’av-9w9u2′][/av_cell][/av_row]
[/av_table]

[/av_one_fifth][av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-k3lhnd7v’ admin_preview_bg=”]

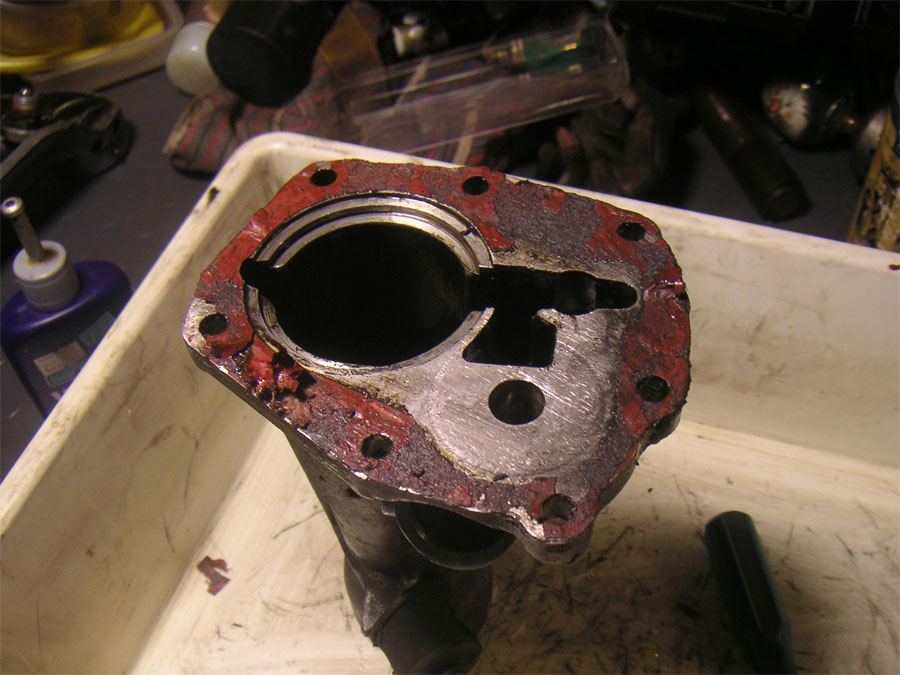

Pulizia del carter posteriore e rimozione della vecchia guarnizione. Lievi sberciature provocate da un cacciavite usato a mò di leva in fase di rimozione del carter, vengono eliminate con una limetta. Niente paura se non si và giù pesante non è necessario usare collante per la tenuta.
[/av_textblock]

[av_table purpose=’pricing’ pricing_table_design=’avia_pricing_default’ pricing_hidden_cells=” caption=” responsive_styling=’avia_responsive_table’ av_uid=’av-qqrw4r’]
[av_row row_style=” av_uid=’av-qfnit6′][av_cell col_style=” av_uid=’av-olioxm’][/av_cell][av_cell col_style=” av_uid=’av-loyz3u’][/av_cell][av_cell col_style=” av_uid=’av-k698m2′][/av_cell][av_cell col_style=” av_uid=’av-joydru’][/av_cell][/av_row]
[/av_table]

[/av_one_fifth][av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-k3lhnd7v’ admin_preview_bg=”]
E proprio alla fine, quando mi apprestavo ad assaporare i frutti del lavoro svolto, l’ingranaggio in nylon del contachilometri ha pensato bene di non venir via sotto una pressa da 12 T!!!!!! E pensare che il manuale Haynes prevede l’uso di un martello!!!! Balle, dopo 40 anni questo è impossibile. Ho provato a bollirlo, ho provato con gli spray che raffreddano a -40°, niente. Il punto è che di questo pezzo non si trovano ricambi per cui bisogna necessariamente recuperarlo. Alla fine ho usato una pressa più “pesante” (non saprei da quante T) ed ho pensato: “o la và o la spacca” ….. è venuto via con gran sollievo, vi assicuro che c’è da sentirsi male. Liberato l’albero ho potuto estrarre anche il cuscinetto posteriore che diversamente non avrei potuto più sostituire dopo tanto lavoro!
[/av_textblock]

[av_table purpose=’pricing’ pricing_table_design=’avia_pricing_default’ pricing_hidden_cells=” caption=” responsive_styling=’avia_responsive_table’ av_uid=’av-qqrw4r’]
[av_row row_style=” av_uid=’av-gyhxgq’][av_cell col_style=” av_uid=’av-fltqre’][/av_cell][av_cell col_style=” av_uid=’av-dha1ii’][/av_cell][av_cell col_style=” av_uid=’av-coiszu’][/av_cell][av_cell col_style=” av_uid=’av-ai1nqy’][/av_cell][/av_row]
[/av_table]

[/av_one_fifth][av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-k3lhnd7v’ admin_preview_bg=”]
Queste foto mostrano lo schermo paraolio del cuscinetto anteriore. Fanno tutti questa fine perchè il sistema di montaggio non assicura il corretto posizionamento dello stesso. Non saprei dire se sia possibile eliminarlo, quando và fuori posto (dopo pochi km.) le perdite d’olio non si verificano.
[/av_textblock]

[av_table purpose=’pricing’ pricing_table_design=’avia_pricing_default’ pricing_hidden_cells=” caption=” responsive_styling=’avia_responsive_table’ av_uid=’av-qqrw4r’]
[av_row row_style=” av_uid=’av-9p6s22′][av_cell col_style=” av_uid=’av-6y3lui’][/av_cell][av_cell col_style=” av_uid=’av-ku07u’][/av_cell][av_cell col_style=” av_uid=’av-42q42y’][/av_cell][av_cell col_style=” av_uid=’av-2l48ru’][/av_cell][/av_row]
[/av_table]

[/av_one_fifth][av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-k3lhnd7v’ admin_preview_bg=”]
Lavaggio della scatola del cambio (Iª foto), è incredibile la limatura che viene fuori. Lavaggio anche della Top cover della scatola che non ho smontato perchè funzionava già egregiamente.
[/av_textblock]
